PC Patrol® - Wireless Infrared Motion Detector



This 'state of the art' Wireless Infrared Motion Detector made by Optex, uses Passive Infrared Detection and features:

Selectable "WIDE ANGLE" or "LONG RANGE" Detection patterns.
Selectable "NORMAL (multi-level)" or "PET ALLEY" Detection patterns.
Battery Saving Circuit (the alarm circuit will not be active until there is a 2 minute period of inactivity in the pattern area.).
Switchable LED for walk test or normal operation.
Selectable Pulse Count (2 or 4).

Simply fasten the Motion Detector to the desired surface (typically a wall), using the screws or adhesive tape provided. It should be placed between 2 and 8 feet from the ground, depending on its intended function in that location. For better radio frequency range between any transmitter and the receiver, mount the transmitter as high above the ground as is convenient.



Specifications

Wireless Range

100 to 130 feet, depending on positioning and surroundings.

Power source

One #1604A 9V Alkaline Battery - 3 years life time.

Coverage

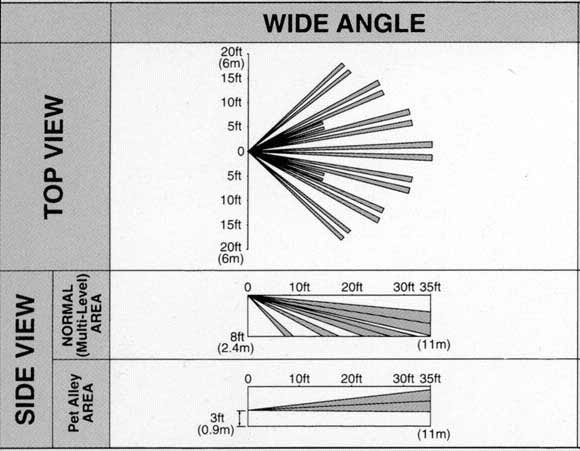

WIDTH: 35ft x 35ft (11m x 11m) 85š wide.

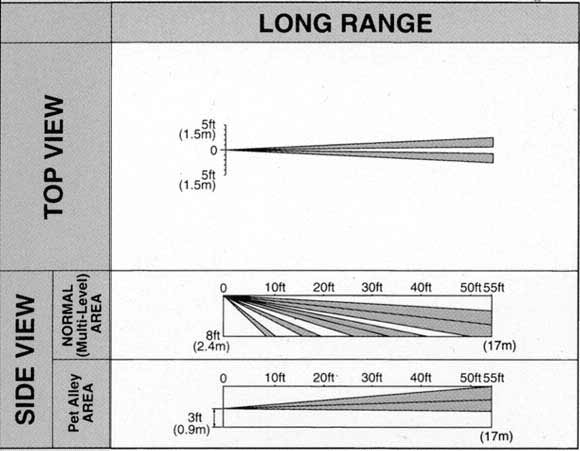

LONG: 55ft x 5.5ft (17m x 1.7m) Long Range.

Detectable Speed

1~5 ft/sec. (0.3~1.5 m/sec.)

Dimensions

Width 1.97" (50mm) Height 3.15" (80mm) Depth 0.91" (23mm)

Weight

7.0oz
